Bionics Hands



We've collaborated with Bionics For Everyone to bring you all you require to think about bionic arms and hands, including point by point depictions of the multitude of flow advances and the most recent examination. Here, Bionics for Everyone shares its understanding and information, making it your one-stop vault for data on upper-appendage bionics.

What is a bionic arm?

A bionic arm is an electromechanical gadget that joins to the human body and imitates the usefulness of a characteristic arm/hand.

It generally comprises of a bionic hand or incomplete hand and, contingent upon the degree of removal, may likewise incorporate a controlled wrist, elbow, and additionally shoulder.

For instance, here are the three setups accessible for the Luke Arm System from Mobius Bionics:

Note, this specific line of gadgets consistently incorporates a controlled wrist yet this is discretionary or not accessible for different gadgets. Likewise, in some utilization cases, the hand might be supplanted with a fueled snare or cinch.

How bionic hands work

This part portrays the restrictions of bionic hand adroitness starting with the mechanical plan of the fingers and working in reverse.

The center mechanical capacity of a human finger is to open and close.A battery-controlled engine drives an equipping framework to move the fundamental MCP joint, which then, at that point moves the second and third joints by means of a bar linkage framework. Note, there are numerous varieties of this, for example, utilizing pulley frameworks to recreate ligaments rather than bar linkage frameworks.

The critical component in this sort of configuration is that there is just a single free joint: the MCP joint (fundamental knuckle). The other two joints consequently take cues from that joint.

By examination, characteristic fingers can move the center or PIP joint autonomously and the DIP joint semi freely. Furthermore, regular fingers can fan out and diversion in a horde of mixes.

The development of a characteristic thumb is considerably more intricate. As well as opening and shutting, it can pivot down and somewhat outward to contact the whole underside of any finger and even pieces of the palm. This permits regular hands to get a handle on objects of any shape.

Notwithstanding its mechanical intricacy, this sort of thumb actually has numerous restrictions. Indeed, it can situate itself to turn into a contradicting power for some holds however it does not have the adroitness of a characteristic thumb.

This carries us to our primary concern for this segment: bionic hands are noteworthy accomplishments of designing yet they are a lot more straightforward than normal hands. In one regard, this scarcely matters since they can in any case play out a wide assortment of undertakings.

In any case, don't anticipate that they should coordinate with the finesse of characteristic hands. A superior method to survey a bionic hand is its value, which is resolved generally by its client control framework.

Client control frameworks

At the point when you move a characteristic appendage, your mind conveys nerve messages to the muscles, which thus move the appendage.

At the point when an appendage is cut away, the mind actually conveys these messages despite the fact that a portion of the muscles are no longer there to respond to them.

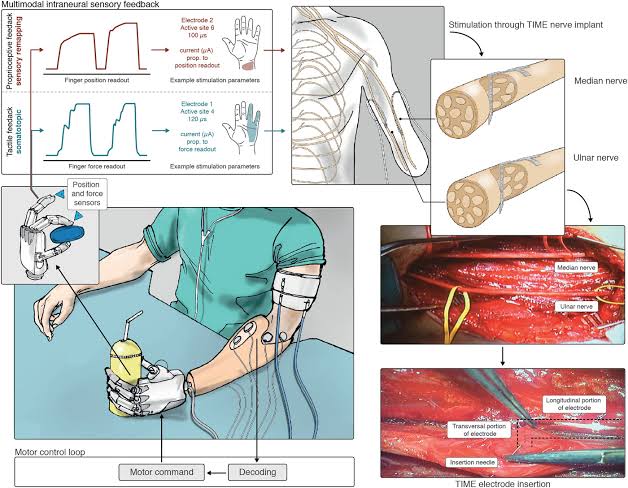

The overall idea driving bionic client control frameworks is to block the mind's signs and convert them into orders for the bionic gadget.

There are numerous approaches to do this for bionic arms and hands. For a speedy outline of control framework choices, see bionic hand control frameworks. For subtleties on every choice, click the applicable connection beneath:

• Myoelectric Direct Control
• Myoelectric Pattern Recognition
• Myoelectric with Surgically Embedded Sensors
• Progressed Neural Interfaces

This subject ought not be ignored. Client fulfillment levels depend on the whole on choosing the correct control framework.



CURRENT BELOW THE ELBOW BIONIC HANDS

Accessible models

Coming up next is a rundown of the models for beneath the-elbow bionic arms and hands either effectively available or destined to be (introduced one after another in order). Each connects to its own page for more explicit subtleties:

Aether Biomedical Zeus Hand

Particle Limbs Atom Touch

BrainRobotics Hand

COVVI Nexus Hand

Mobius Bionics LUKE Arm

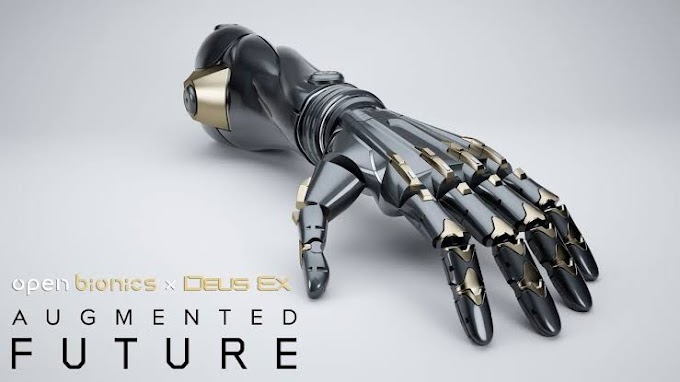

Open Bionics Hero Arm

Ossur I-Limb

Ottobock bebionic Hand

Ottobock Michangelo Prosthetic Hand

Psyonic Ability Hand

TASKA Prosthetics TASKA Hand

Limitless Tomorrow TrueLimb

Vincent Evolution

The Zeus, Nexus, BrainRobotics, I-Limb, bebionic, Michelangelo, Ability, TASKA, and Vincent Evolution gadgets can all utilized as segments in underneath or over the-elbow arrangements. They can all interface with direct myoelectric control frameworks, while most can likewise be utilized with all inclusive example acknowledgment control frameworks like Coapt's Gen2 and IBT's Sense.

The Atom Touch and Luke Arm gadgets are particular frameworks that can be designed for any degree of removal beneath or over the elbow. The Luke Arm can utilize a full scope of control frameworks while the Atom Touch depends on a profoundly progressed, respectability control framework driven by man-made consciousness.

The Hero Arm and TrueLimb are finished beneath the-elbow arrangements that offer restrictive, direct myoelectric control frameworks as it were.

Reasonableness of bionic hands and feet

Of the bionic hands as of now available, the most reasonable are the TrueLimb from Unlimited Tomorrow, the Hero Arm from Open Bionics, and the Zeus Hand from Aether Biomedical.

In their easiest design (least muddled remaining appendage), the last cost for these three gadgets can go from £8,000 to £17,500, including prosthetist charges, where pertinent.

By examination, the most costly hands can cost more than £60,000.

Current partial hand or finger options

Nearly 2/3 of upper-limb amputations involve finger or partial hand loss. This equates to millions of people around the world who are missing fingers, parts of fingers, or a part of their palm.

Both Ossur and Vincent Systems have created excellent bionic partial-hand prostheses but these are not well-suited for heavy loads or challenging environments. They’re also quite expensive. To address these deficiencies, our list of articles on partial-hand devices includes the best non-bionic (i.e. strictly mechanical) options:

• Ossur i-Digits
• Vincent Partial
• Mechanical Partial Hand Prostheses

In keeping with our goal of helping you stay informed, we have also created a current partial hand prosthesis options summary page.

Current above-the-elbow bionic solutions

Which myoelectric design acknowledgment situation is appropriate for you?

Coming up next is a rundown of complete over the-elbow bionic arrangements either effectively available or destined to be (introduced sequentially). Each connects to its own page for more explicit subtleties:

Molecule Limbs Atom Touch

Mobius Bionics Luke Arm

Note that, due to their measured nature, both of these gadgets can likewise be utilized for underneath the-elbow arrangements.

The following rundown comprises of electric elbows, which are not simply elbows. They likewise give connectors and control focuses to different parts like electric wrists and bionic hands or other terminal gadgets. Set all the more forth simply, an electric elbow is definitely not a total over the-elbow arrangement. Be that as it may, it is your beginning stage to bits together such an answer in the event that you don't wish to utilize one of the total arrangements recorded previously.

School Park Boston Digital Arm

More extreme Espire Elbow

Movement Control Utah Arm

Ottobock DynamicArm

Ottobock ErgoArm

Note, we are inadequate with regards to strong data on the net money cost of these elbows to end-clients for a commonplace arrangement. In the event that you have this data, if it's not too much trouble, share it with us through our contact structure.

At long last, here is a subset of the bionic hands that can be utilized while sorting out an over the-elbow arrangement utilizing parts from various makers:

Aether Biomedical Zeus Hand

BrainRobotics Hand

COVVI Nexus Hand

Ossur I-Limb

Ottobock bebionic Hand

Ottobock Michangelo Prosthetic Hand

Psyonic Ability Hand

TASKA Prosthetics TASKA Hand

Vincent Evolution

You might be pondering about wrist parts or potentially shoulder segments. We don't yet have an adequate handle of these segments to spread out the alternatives yet we do plan to do as such later on.

Moderateness

The huge issue with over the-elbow bionic arrangements is cost. The expense for the Atom Touch is somewhere in the range of $50,000 and $100,000 US relying upon the design. The expense of the LUKE Arm is likely comparative.

Indeed, even the electric elbows can sell for more than $50,000 US for best in class models, and that is before you've added a wrist and hand or another bionic terminal gadget.

Tragically, this sticker price surpasses the financial plan of most amputees. In any case, we ought not be debilitate by this. The process can't be rushed for new advances to stream down into the more extensive market. And afterward it takes much more (for example the impact of market influences) to essentially decrease costs. We simply need to do what we can to speed up these cycles.

Related data

Bionic arms can connect straightforwardly to the humerus (upper arm bone) or span and ulna (lower arm bones) through Osseointegration. This improves scope of movement, strength, soundness, and furthermore adds a simple feeling of touch (through vibration). For more data, see Osseointegration for Bionic Limbs.

For a far reaching depiction of all momentum lower-appendage advances, gadgets, and examination, see our total manual for bionic hands and feet.

By Bionics For Everyone
